A route-location marker assembly with a 420 x 300 mm sign face on a 50 x 50 x 2 mm galvanised square-tube post. Provide the route, section, chainage and direction details required by the project drawing.

Technical specification

• Marker face: 420 x 300 mm; orientation and legend follow the approved schedule.
• Post section: 50 x 50 x 2 mm galvanised square tube.
• Post length, end cap, fixing positions and embedment are specified before manufacture.
• Reflective grade, background colour and lettering are confirmed against the route marker drawing.

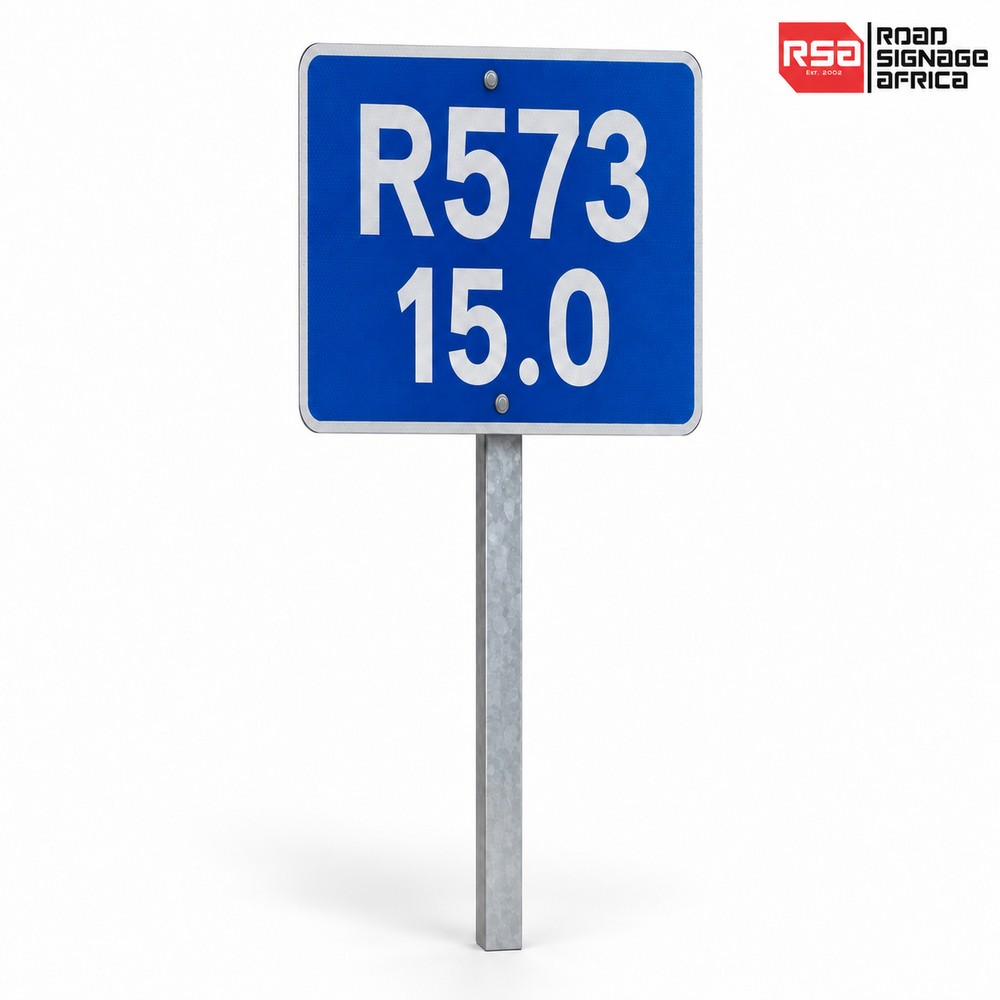

• The illustrated R573 / 15.0 legend is an example and is replaced with approved project data.

Scope and exclusions

Foundation works, backfill, route setting out, delivery and installation are excluded unless quoted. Exact assembly pricing requires post length and material specification.

Ordering details

Send the required quantity, dimensions, site location and approved drawing or sign schedule to Road Signage Africa. Confirm material and reflective grade before production. Product images are illustrative. Prices exclude VAT. BOQ references: W01025.

Request a project quotation or contact our team.
